CMC 5/8″ Non-Tilt Block and Tackle Balance Caldwell Series 86BT 3 digit code first 2 digits are 1″ less than the metal to metal length the next digit is the weight code
CMC 5/8″ Non-Tilt Block and Tackle Balance Caldwell Series 86BT
$10.75 – $11.75

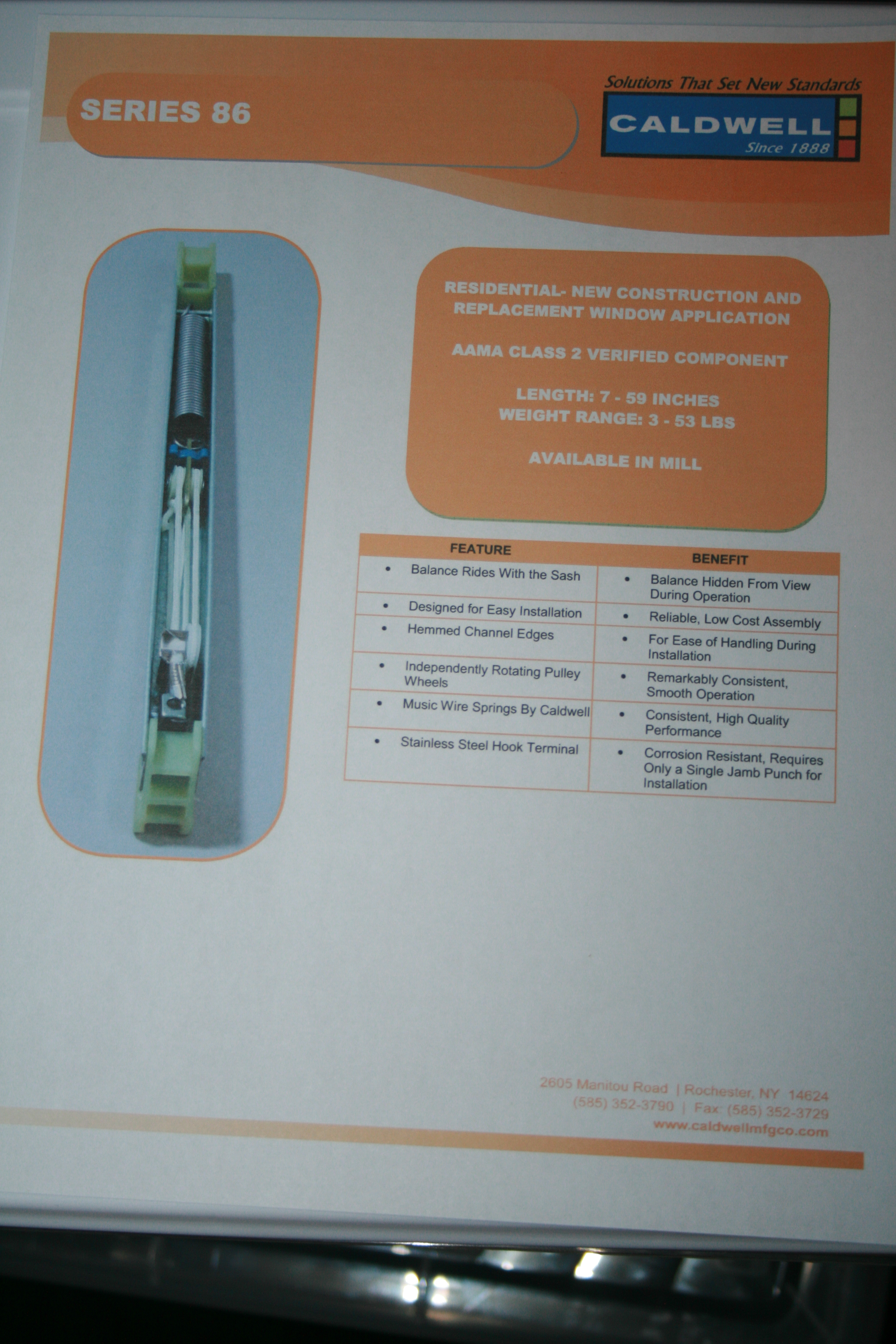

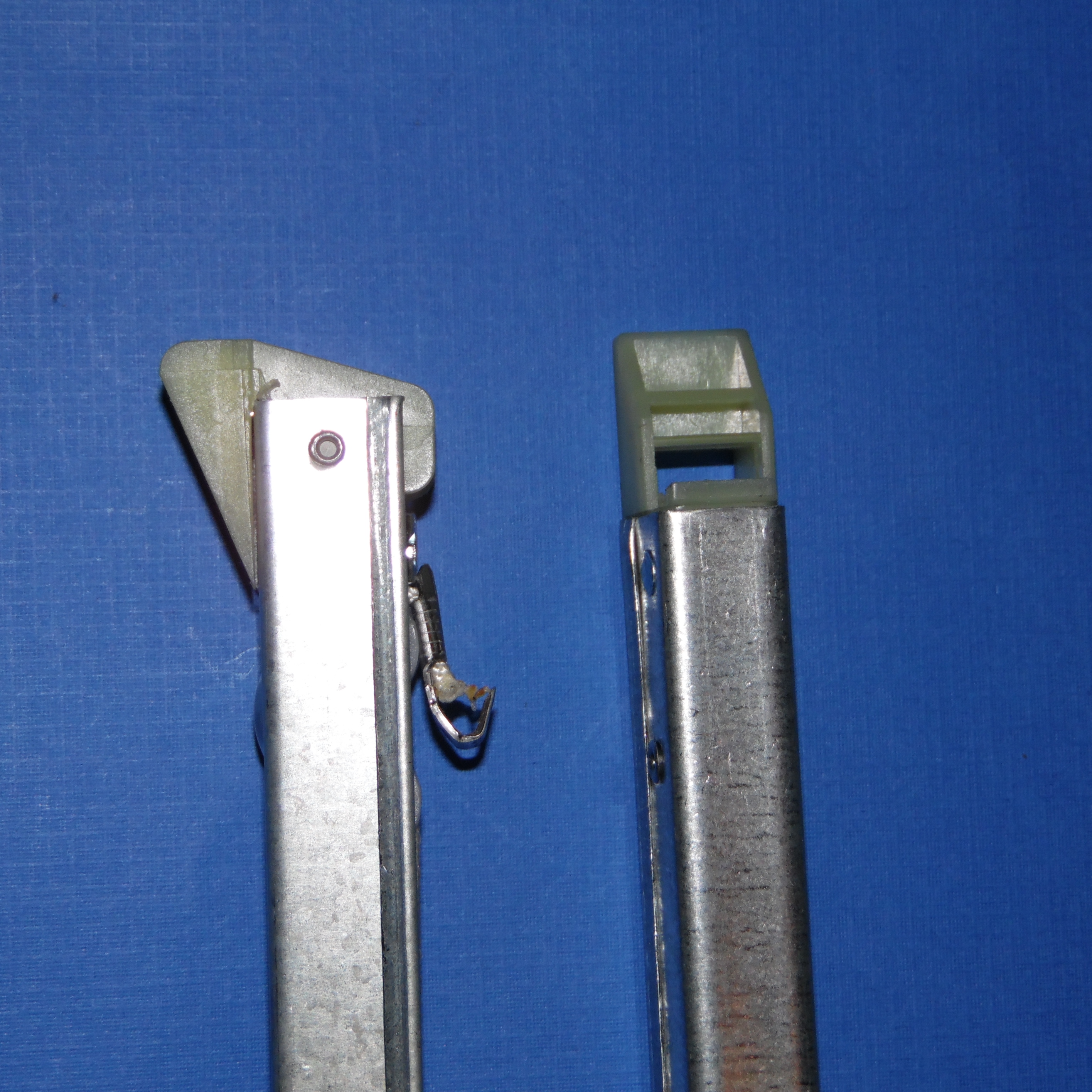

Caldwell series 86 side load Block and Tackle. The most popular guides are top: 15p32 and bottom: 15p72. Balances are stamped with a length and weight code exp. 24-2 which is a 25″ length (metal to metal channel -1″) and the 2 is a weight capacity. Note Balance number is 1″ less the the metal channel length not including the plastic guides.
Additional information
| Balance number(FIRST STAMP NUMBER) | 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59 |
|---|---|
| Weight Code (NUMBER AFTER SPACE) | 1, 2, 3, 4, 5, 6, 9 |

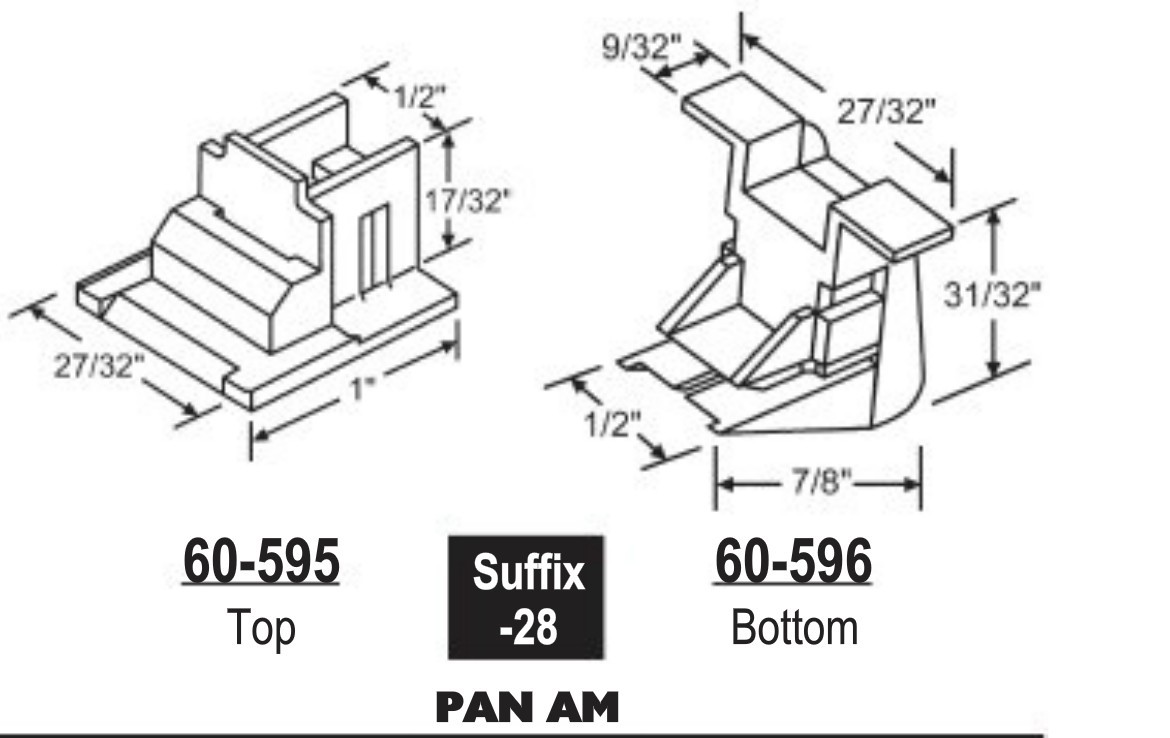

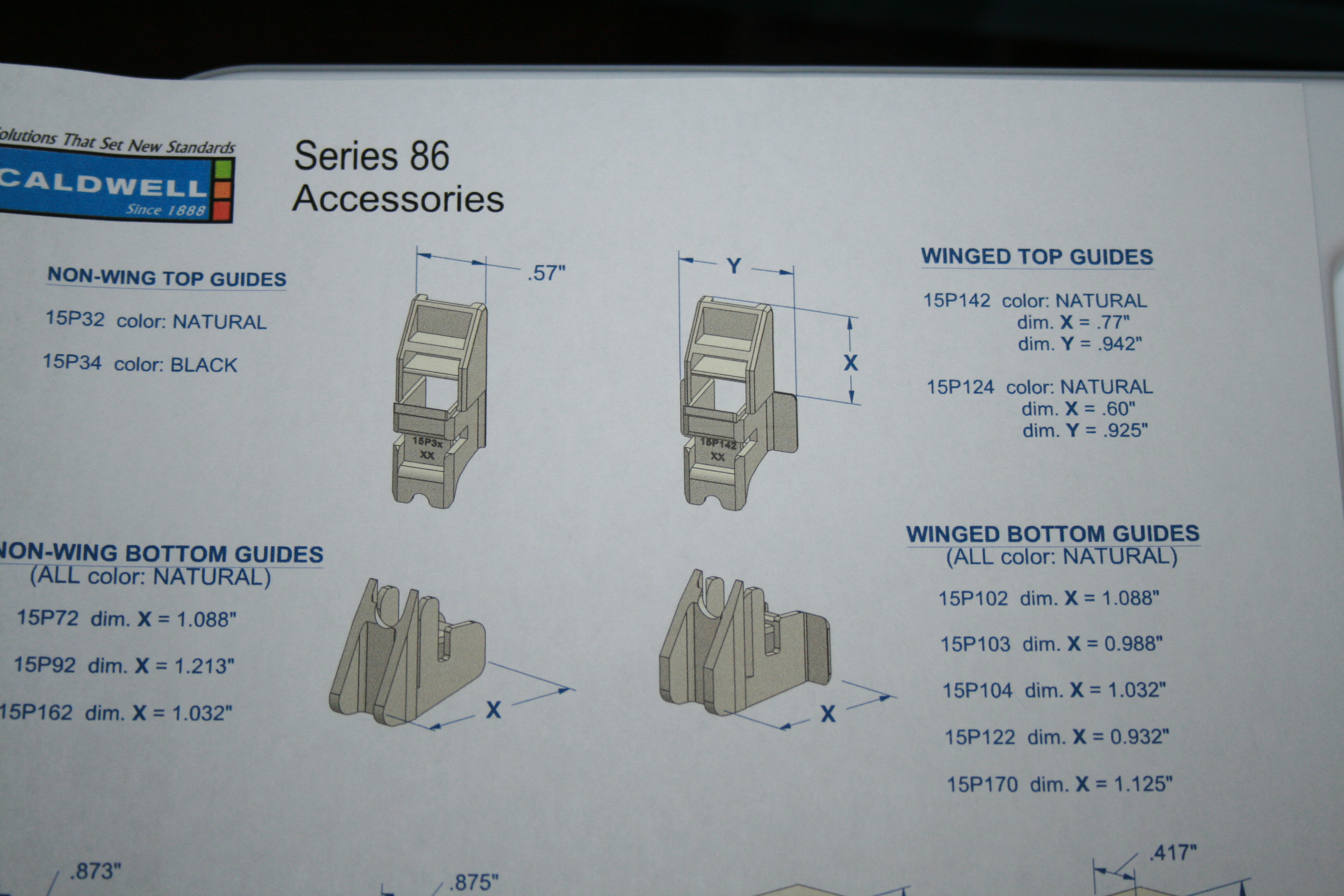

| Top Guides | 15P32, 15P142 WINGED, 15P124 WINGED, 60-595 |
| Bottom Guide | 15P72, 15P82, 15P92, 15P162, 15P102 Winged, 15P103 Winged, 15P104 Winged, 15P122 Winged, 15P170 Winged, 60-596 |
